Stainless Steel Grade 316 Stainless Steel Tube
Classification of stainless steel pipe: stainless steel seamless steel pipe and stainless
steel welded steel pipe (seamless steel pipe) are two basic categories. According to
the outer diameter shape of steel pipe it can be divided into circular pipe and special-
shaped pipe.Circular steel pipe is widely used, but there are also some special-shaped
steel pipes such as square, rectangle, semicircle, hexagon, equilateral triangle and octagon.
| Origin | ZHEJIANG China |
| Brand | TORICH |
| Material | 316 Seriel |
| Technical | Cold Rolled |
| MOQ | 1Ton |
| OD | 200 mm |
| Tolerance | ±1% |
Application scope of stainless steel pipe:
It is widely used in industrial transmission pipelines and mechanical structural parts such as petroleum,
chemical industry, medical treatment, food, light industry, machinery and instruments.
The production process of stainless steel pipe is mainly as follows:
1. Tape ordering: it is the raw material of steel strip before processing. The steel plant
supplies according to customer needs.
2. Calendering: press the rolling plate like rolling noodles with a calender to know that
the thickness of the rolled plate is the same as that of the required pipe.
A coiled plate can only be pressed to one thickness.
3. Annealing: after calendering, the material distribution of the coil is uneven, the physical
properties are not up to standard, and the toughness is not enough, so it needs to be
annealed - go through a furnace with a high temperature of 1000 ℃ again to restore
its normal stainless steel properties.
4. Slitting: slitting is carried out according to the outer diameter of the pipe to be
produced, and the large plate is divided into different widths.
5. Pipe making: put the steel strip with powder strips into the pipe making machine
with different pipe diameter molds for production, roll it into corresponding shapes, and then weld it.
6. Polishing: after the pipe is welded and formed, the surface is polished by a polishing machine.
The original blackened surface is polished by a polishing machine equipped with wax, hemp wheel
and cloth wheel and then polished into silver bright color.
Product Tags:
|
|

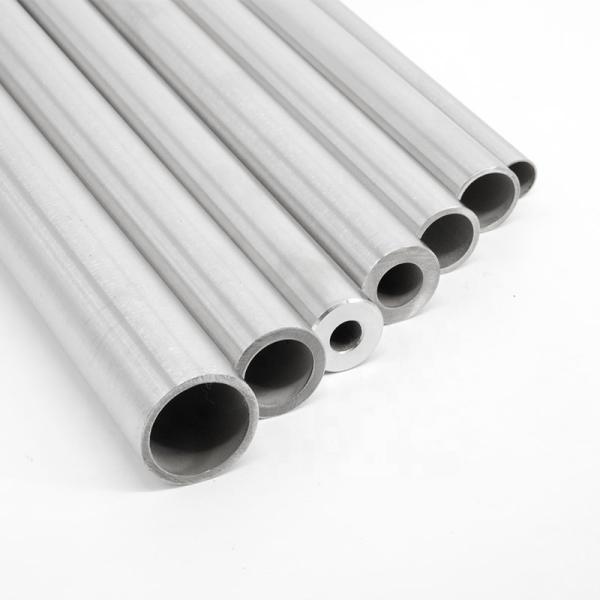

Seamless Grade 316 Torich Round Stainless Steel Tube Images
|
