Petrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical Tubing

TORICH INTERNATIONAL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Petrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical Tubing

Brand Name : TORICH

Model Number : ASTM A312

Certification : ISO9001, ISO14001, TS16949

Place of Origin : ZHEJIANG, CHINA

MOQ : 10Tons

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000Tons per Year

Delivery Time : 60-70 work days

Packaging Details : Stainless Steel Tubes are packed in bundles in seaworthy packing.

Keyword : Stainless Steel Pipe

Standard : ASTM A312

Material : 304, 316, 316Ti etc

Shape : Round

Surface : Pickling

OD : 304.8-609.6 mm

WT : 1.65-7.92 mm

Length : max 12m or 14m

Usage : Petrochemical Industry

Tolerance : WT:±10% OD:±0.5%

Contact Now

Products Description
Product Name
Seamless Cold Drawn Thick Wall Stainless Steel Tube for Petrochemical Industry
Standard
ASTM A312 Seamless Welded and Heavily Cold Worked Austentic Stainless Steel Pipes
Size
OD:304.8-609.6mm WT:1.65-7.92mm Length :max12m(OD>219mm), max14m(OD<219m)
Type
Seamless
Material
304, 316, 316Ti
Application
Petrochemical Industry

Chemical Requirements

Element
304
304L
316
316L
316Ti
C
≤0.08
≤0.030
≤0.08
≤0.030
≤0.08
Mn
≤2.00
≤2.00
≤2.00
≤2.00
≤2.00
P
≤0.045
≤0.045
≤0.045
≤0.045
≤0.045
S
≤0.030
≤0.030
≤0.030
≤0.030
≤0.030
Si
≤1.00
≤1.00
≤1.00
≤1.00
≤1.00
Cr
18.0-20.0
18.0-20.0
16.0-18.0
16.0-18.0
16.0-18.0
Ni
8.0-11.0
8.0-12.0
10.0-14.0
10.0-14.0
10.0-14.0
Mo
/
/
2.0-3.0
2.0-3.0
2.0-3.0
Other
Ti5X(C+N)~0.7 N≤0.10

Featured Products

168.3mm*2.77mm
219.1mm*3.76mm
273.1mm*4.19mm
323.9mm*4.57mm
355.6mm*4.78mm
406.4mm*4.78mm
457.2mm*4.78mm
508mm*5.54mm
558.8mm*5.54mm
609.6mm*6.35mm
660.4mm*7.92mm
711.2mm*7.92mm
762mm*7.92mm
812.8mm*7.92mm

The Stainless Steel Pipes of the above specifications after solution treatment, no deformation will occur. The condition od delivery is: soft; The products are mainly used in Petrochemical, Biological, Papermaking, Shipbuilding Seawater Desalting and Hydroelectric & water coservancy projects

Process Flow

Billets →Inspection →Peeling →Heating →Punching(Centering) →Cutting →Piercing →Inspection →Lubricating and Drying →Solution Annealed →Degreasing →Cold Drawing/Rolling →Straightening →Cutting →Pickling/Passiviting Packing →Marking →Final Inspection →Shipping

QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

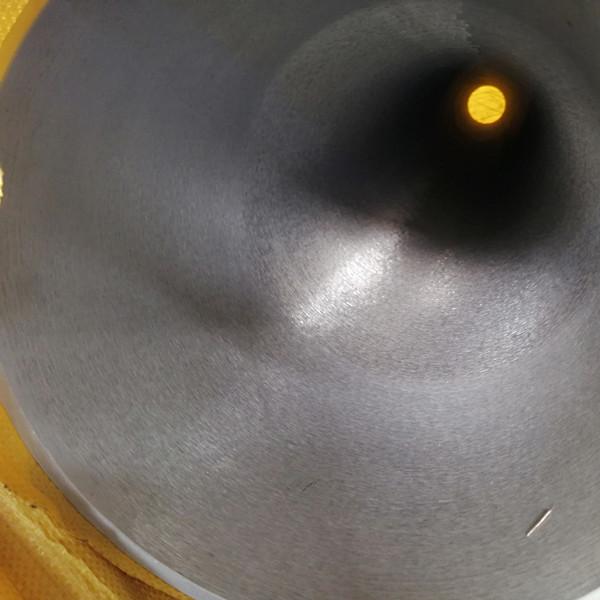

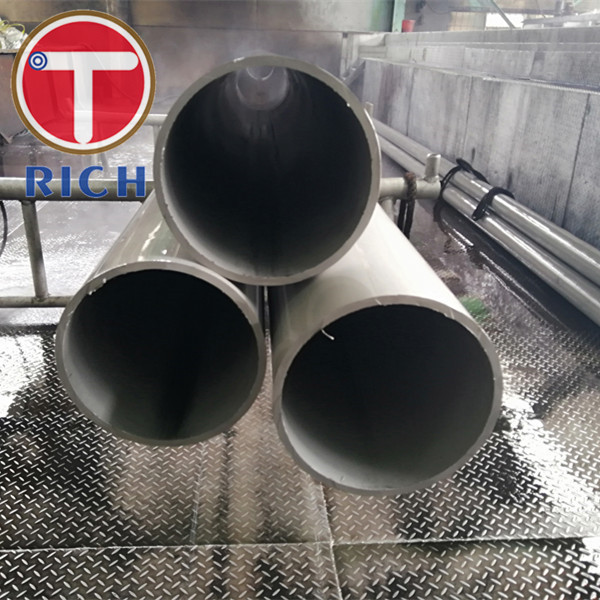

Products Show

Petrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical TubingPetrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical Tubing
Packing & Delivery
Petrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical TubingPetrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical Tubing
Our Certifications
Petrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical TubingPetrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical TubingPetrochemical Industry Heavy Wall Seamless Pipe / Seamless Mechanical Tubing
FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
